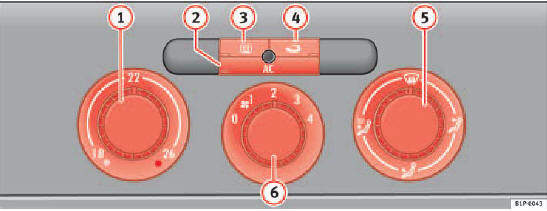

Fig. 108 On the dash panel: Climatic controls

Heating of the vehicle interior
– Turn the temperature selector  fig. 108 1 clockwise to select the required temperature.
– Turn the blower switch to one of the settings 1-4.
– Use the air distribution control to guide the flow of air in the required direction: (to the windscreen), (to the upper body), (to the foot well) and (to the windscreen and to the foot well).

Cooling the passenger compartment
– Switch on the air conditioner using the button fig. 107 .
– Turn the temperature selector anti-clockwise until the desired cooling output is reached.
– Turn the blower switch to one of the settings 1-4.
– Use the air distribution control to guide the flow of air in the required direction: (to the windscreen), (to the upper body), (to the foot well) and (to the windscreen and to the foot well).

Heating system
Maximum heat output, which is needed to defrost the windows quickly, is only available when the engine has reached its operating temperature.

Air conditioner
When the air conditioning system is switched on, not only the temperature, but also the air humidity in the vehicle interior is reduced. This improves comfort for the vehicle occupants and prevents misting of the windows when the ambient air humidity is high.

If the air conditioning system cannot be switched on, this may be caused by the following reasons:

• The engine may not be running.
• The blower is switched off.
• The ambient air temperature is lower than +3°C.
• The air conditioning system compressor has been temporarily switched off because the engine coolant temperature is too high.
• The air conditioner fuse is faulty.
• Another fault in the vehicle. Have the air conditioner checked by a qualified workshop.
