Seat Leon >> Air recirculation mode
Air recirculation mode prevents fumes or unpleasant smells from entering the vehicle.

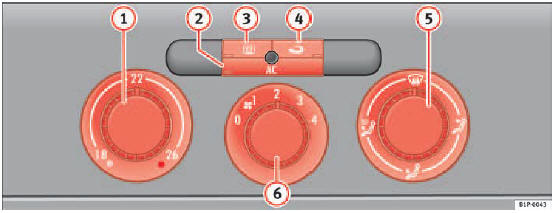

Fig. 109 On the dash panel: Climatic controls
Air recirculation mode fig. 109
prevents strong odours in
the outside air from entering the vehicle interior, for example when passing
through a tunnel or in queuing traffic.
With low outside temperatures, the air recirculation increases the effectiveness of the heating system by warming the air inside the passenger compartment rather than the air from outside.
With high ambient temperatures, the air recirculation increases the effectiveness of the air conditioning system by cooling the air inside the passenger compartment rather than the air from outside.
For reasons of safety, air recirculation is not possible when the control for
air
distribution is set to the windscreen setting
.
WARNING
In air recirculation mode, no ambient air enters the vehicle interior. If the air conditioning system is switched off, the windows can quickly mist over.
Therefore, you should never leave the air recirculation mode switched on for longer periods, as this increases the risk of an accident.
Heating and cooling the interior
Fig. 108 On the dash panel: Climatic controls
Heating of the vehicle interior
– Turn the temperature selector fig. 108 1 clockwise to select
the required temperature.
– Turn the blower ...
