Seat Leon >> Removing and installing bonnet lock
SEAT Leon Service and Repair Manual / General body repairs, exterior / Bonnet, rear lid / Bonnet / Removing and installing bonnet lock
Special tools and workshop equipment required

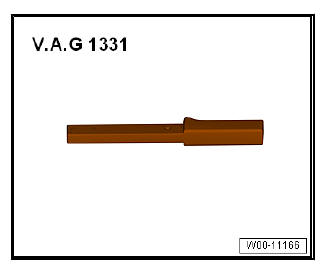

- Torque wrench - V.A.G 1331-
Removing
WARNING Always replace mounting bolts for bonnet catch with new bolts every time they are loosened. |
- Lift the front bonnet. Use the rod to keep it open.
- Disconnect the connector from the microswitch and clip out of the lock carrier.

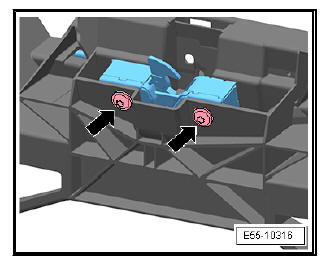

- Unscrew the two bolts -arrows- fastening the lock.

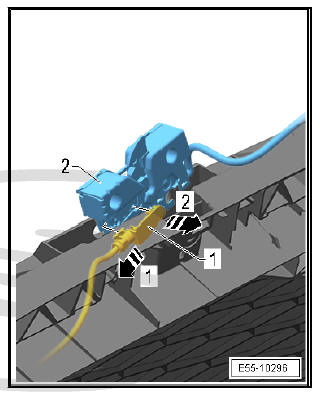

- Pull out the lock of the bonnet up a little -2-.
- Hook out the Bowden cable from the lock -1-, first clip out at the lower area -arrow 1- and then remove by pulling in the direction of -arrow 2-.
fitting
Fit in reverse order from removal, remembering the following:
WARNING Always replace mounting bolts for bonnet catch with new bolts every time they are loosened. |
Adjustment:
- Checking panel gaps.
