Removing

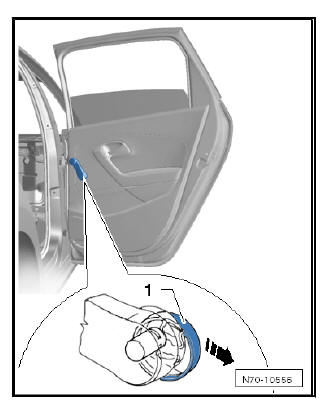

• Press the locking ring -1- forwards in the direction of travel -arrow- and remove the window winder.

fitting

• The installation is carried out in reverse order of removal for the removal procedures described.

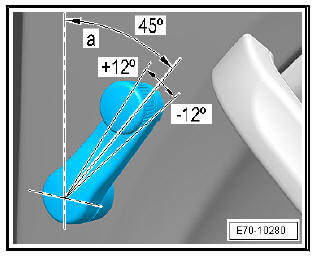

Note The assembly position with windows closed is: a = 45º +- 12º.

Removing and installing inner door cover

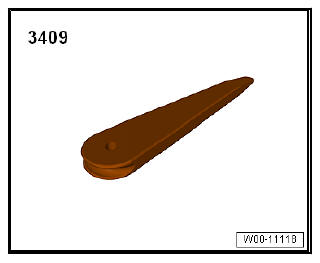

Wedge - 3409-

Removing

• Remove interior trim of back door: Front door trim: removing and installation; back door trim: removing and installation.

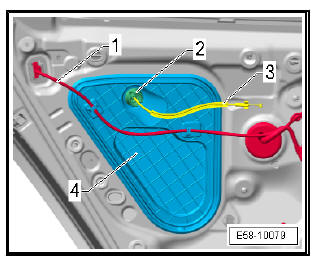

• Expose the electric wiring harness -1-from the retaining tabs of the inner protection cover -4-.
• With the wedge - 3409- detach the inner protection cover -4-.
• Disengage the sleeve -2- of the inner protection cover -4-.

fitting

Fit in reverse order from removal, remembering the following:

• You should hear the inside protection cover click into place.
• You inside protection must be installed flush.

Slip plate - removing and installing

Removing

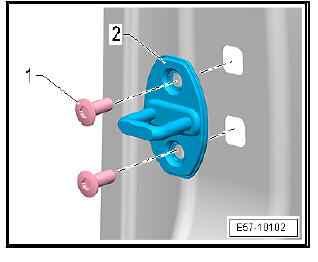

• Unscrew bolts -1- and remove strike plate -2-.

fitting

• Fit striker pin -2- and lightly tighten screws -1-.
• Adjust strike plate.
• Use the tightening torque of the screws.
