Seat Leon >> Removing and installing the manual drive

Removing

  • Remove window elevator crank.
  • Remove interior trim of back door: Front door trim: removing and installation; back door trim: removing and installation.
  • Secure door window against sliding down with adhesive tape.

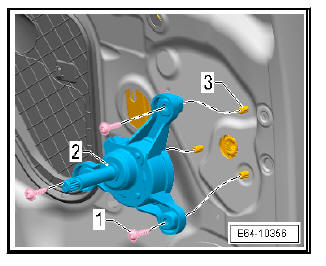

  • Remove screws -1-.
  • Remove the manual actuating mechanism -2- from its bracket -3-.

fitting

  • Insert the manual actuating mechanism -2- into its bracket -3-. Move door window up and down slightly so that the splines of the manual actuation mechanism and cable drum engage more easily.

Further installation is carried out in reverse order from removal, remembering the following:

  • Use the tightening torque of the screws.

Rear doors, door components

Rear door window frames: removal and installation

Removing

  • Remove the rear door glass.

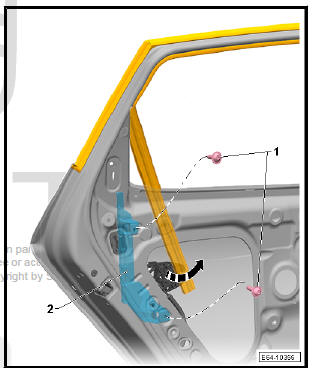

  • Detach the window guide -arrow- from the window frame -2-.
  • Unscrew bolt -1- and remove the window frame -2-.

fitting

Fit in reverse order from removal, remembering the following:

Rear doors, door components

Caution

Before mounting the door trims, the function of the manipulated components must be checked.
  • Use the tightening torque of the screws.
