Seat Leon >> Spoiler

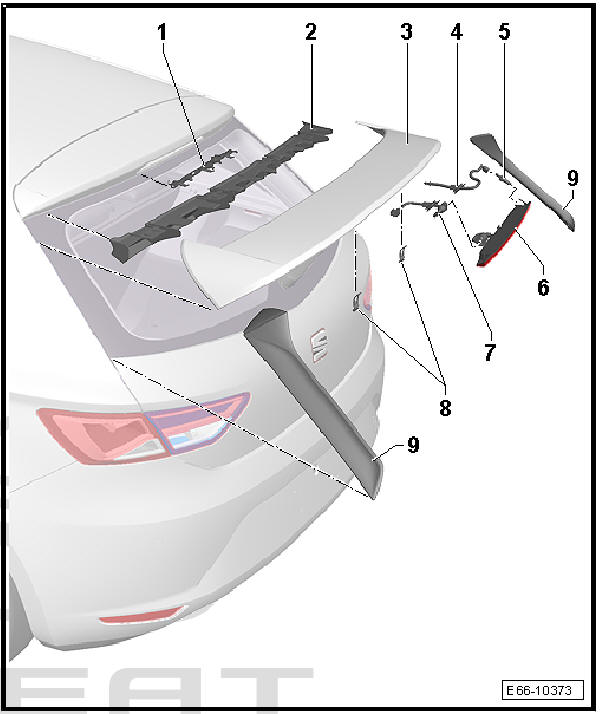

Exploded view - spoiler

Exterior equipment

  1. - Rail
  2. - Spoiler mounting
  3. - Spoiler trim
    • Removing and fitting
  4. - Light tube for the rear window wiper fluid
  5. - Spray jet
    • Remove and install
  6. - High mounted brake light
    • Remove and install
  7. - Electrical interconnection
  8. - Clips
    • 2 off
  9. - Protective side strips
    • Removing and fitting
